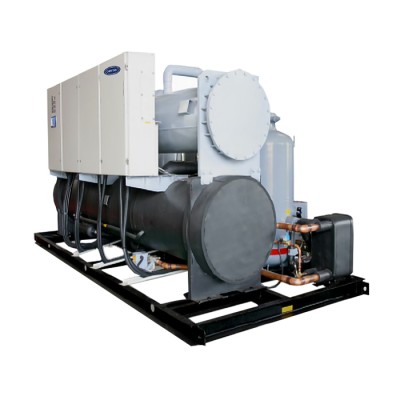

Odyne-Water Cooled Screw Flooded Chillers

Odyne offers ZKEW-D Water Cooled Rotary Screw Flooded Chillers that are available from 70 to 1000 TR [246 to 3517 kW].

These units are supplied with rotary screw compressors that are backed by more than 20 years of experience.

Improved Quiet, Reliable Series of Vertical Screw Compressors. Improved Flooded Shell & Tube Evaporator and Condenser,

High Efficiency and COP, Colour Touch Screen Display, Environmental Friendly R134a Inverter Driven Compressor,

Suitable for Green Building Application, Reliable, and Flexible Applications, Improved Performance and IPLV

Size/Range

  • ODYNE offers ZKEW-D Water Cooled Rotary Screw Flooded Chillers
  • 37 Models from 70 to 1000 TR [246 to 3517 kW].
  • Multiple compressor units provide redundancy and favorable part load efficiency.
  • One-year parts warranty at no extra cost.

Compressor(s)

  • Improved, quiet, reliable MSC Vertical Rotary Screw Compressors with up to 2 integral oil separators.
  • Optimized for R134a and optimized volume ratio for best efficiency.
  • Improved rpm and noise level.
  • Optimized rotor drive.
  • Improved rotor and anti-reverse rotation bearing design.
  • Optimized VI port position and geometry.
  • Multiple rotary screw compressors are designed for better reliability and redundancy.
  • Welded hermetic design with no requirement for internal parts service, no periodic compressor tear down and overhaul, and eliminates casing leakages.
  • Consistent loading and unloading with a dependable slide valve mechanism.
  • No external oil pump is required.
  • Double-delta motor winding with 1/3 lock-rotor amps at start-up. Star-delta motor winding for MSC 226 mm series.
  • Vapor injection cycle to increase capacity and improve efficiency.

Evaporator/Condenser

  • Cleanable and Removable Integral Fin Copper Tubes.
  • One, Two, or Three Water Passes Available. Removable Water Heads.
  • Victaulic Groove Water Connections.
  • Vessel designed according to ASME Code approved and certified by JKKP.
  • Relief Valves(s) standard - 3/4" FPT or 1” PPT.
  • Full Pump Down Capacity in Condenser.
