Rooftop Packaged Vortex Series

VKORD40OF

,

VKORD40OGOF

,

VKORD50OGOF

,

VKOR95OGOF

,

VKORD160OGOF

,

VKORD190OGOF

,

VKORD220OGOF

,

VKORD250OGOF

,

VKORD290OGOF

,

VKORD320OGOF

,

VKORD380OGOF

,

VKORD435OGOF

,

VKORD480OGOF

,

VKORD510OGOF

,

VKORD570OGOF

,

VKORD640OGOF

,

VKORD68OGOF

,

VKORD700OGOF

,

VKORD760OGOF

,

VKORD800OGOF

,

VKOR81OGOF

,

VKORD1340OGOF

,

VKORD890OGOF

,

VKORD960OGOF

,

VKORD1020OGOF

,

VKOR108OGOF

,

VKORD1140OGOF

,

VKORD125OGOF

,

VKORD145OGOF

,

VKORD1520GOFO

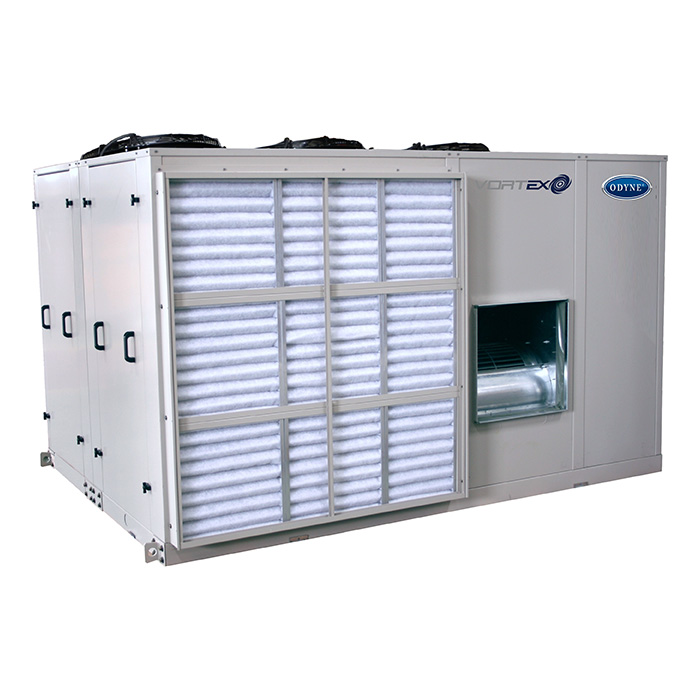

Odyne-Rooftop Packaged Vortex Series

ODYNE Vortex Series Standard Efficiency Single-Packaged Rooftop Units.

With Scroll compressors. Available for cooling and cooling and heating 50hz and 60Hz (R-410A) Refrigerant. 3 to 108 Nominal Tons Cooling operating range up to 115 °F (46°C).

Non-corrosive composite condensate pan. Vortex rooftop packaged it can be customized as copper tubing and copper fins and more customizations are available upon request.

Odyne rooftop units were designed to satisfied customers and get the job done as designed. we’ve made the unit easy to install, easy to maintain, and easy to use.

Units are pre-wired and pre-charged with environmentally (R-410A) refrigerant at the factory site. The units are factory tested in both heating and cooling modes.

REFRIGERANT R410A

  • VKORD-O Series uses the environmentally friendly refrigerant, R410A in each system.
  • Zero ozone depletion potential.



HERMETIC SCROLL COMPRESSOR(S)

Reliability

  • No contact scroll design that minimizes friction, increases volumetric efficiency and reduces vibration, thus longer service life.
  • Suction gas cooled motor.



Low Power Consumption:

  • High EER.
  • No crankcase heater required.



CLASS F INSULATION CONDENSER FAN MOTOR

  • Extra safety margin and longer motor life even in extreme operating conditions
  • IP 55 construction ensure extra motor protection (VKORD-68O Series to 1520O)
  • Low motor speed at 950 rpm ensures quiet condenser fan operation.



MULTIPLE COMPRESSOR (VKORD-250O Series and above)

  • By cycling off compressor operation to match building load, no energy is being wasted when room load requires lesser cooling capacity.
  • No total shut down when servicing or repairing a faulty compressor.



 EFFICIENT CONDENSER COIL

  • Staggered row of 3/8”OD inner groove tubes with 25 to 30% more surface area guarantee better heat transfer.
  • Mechanically expanded into die-formed corrugated aluminum fins.
  • Integral subcooling circuit to maximize efficiency.
  • One or multiple thermal expansion valve promotes efficient cooling and superheat during reverse cycle
  • Leak and pressure tested to 650 psig.

rooftop_description_odyne_vortex_series

vortex_rooftop_physical_dimensions
